CENTRIFUGAL FAN

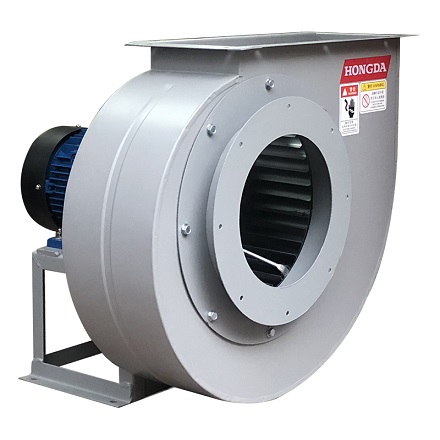

CFS Series-High pressure forward-tilt centrifugal fan Product specification

Product specification
Model: 250～1,400mm
Air volume: 1,000～100,000cmh
Pressure: 300～2,200pa
Working temperature: - 20°C to + 80°C
Relative humidity: ≤90%
Medium condition: air with particle concentration ≤150mg/m3
Transmission: direct drive，belt drive
Spare parts (separately purchased): shock absorber, common base, reducer (soft connection), air valve, muffler, muffler, filter box
Application: applicable to industrial production, commercial buildings, civil buildings, HVAC

Product introduction
● Materials are made of black carbon steel, galvanized treatment, stainless steel (SUS304 / 316 / 310S) or other special materials
● It can be used as split type or integral type (grease or oil) bearing
● The overall fan is of detachable design, convenient for maintenance and cleaning
● Appearance painting can be produced according to the requirements specified by customers
● The export diversion can be produced according to the requirements specified by the customer
● All impellers are subject to dynamic and static balance correction, and the balance standard is in accordance with ANSI / amca204-05 (r2012)
