CENTRIFUGAL FAN

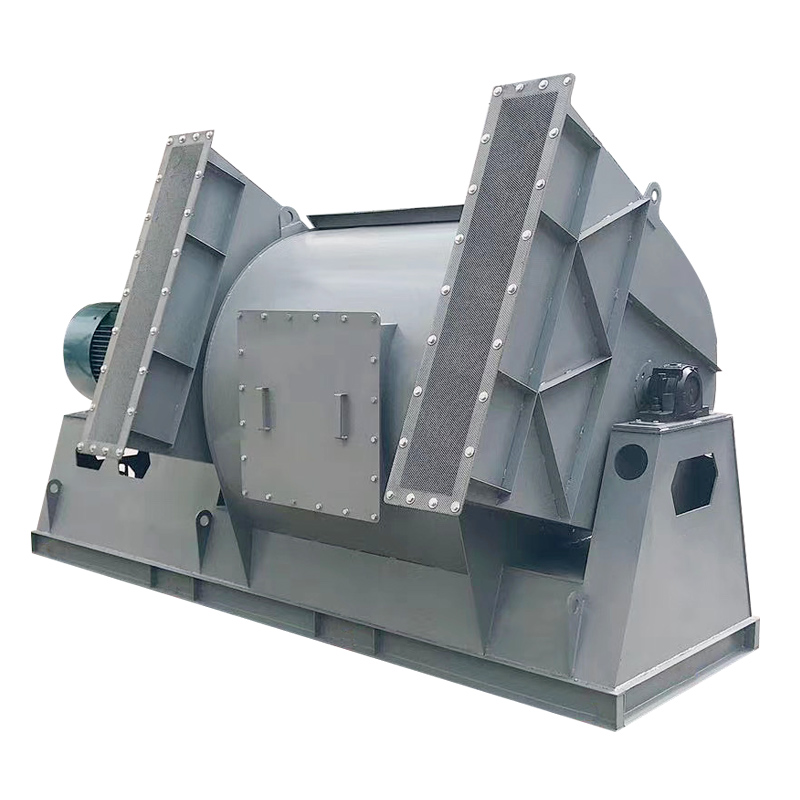

BNC Series Industrial centrifugal fan
Product specification
Model: 2,000～3,150mm
Air volume: 159,000～900,000cmh
Total pressure:3,700～8,000pa
Working temperature: - 20°C to + 250°C
Relative humidity: ≤90%
Medium condition: air with particle concentration ≤150m /m3
Transmission: direct drive
Spare parts (separately purchased): shock absorber, common base, reducer (soft connection), air valve, muffler, muffler, filter box
Application: suitable for industrial production, iron and steel plant, mining industry, chemical industry, environmental protection and dust removal
Product
introduction
● Backward tilt impeller design, high efficiency
and high pressure, stable operation
● Double suction type air inlet, detachable
volute design, convenient maintenance
● The air outlet can be made into the form of
air inlet box to facilitate the installation of air duct, or directly open in
the atmosphere
● The shell shall be coated with high
temperature paint to ensure the protection performance under high temperature
● Material is divided into black carbon steel,
galvanized treatment, stainless steel (SUS304 / 316 / 310S) or other special
materials
● Appearance painting can be produced according
to customer's specified requirements
● Export diversion can be produced according to
the requirements specified by customers
● The impellers are subject to dynamic and
static balance correction, and the balance standard is in accordance with ANSI
/ amca204-05 (r2012)
