Home BOX FAN CBF Series High efficiency forward tilt box-shape centrifugal fan
BOX FAN

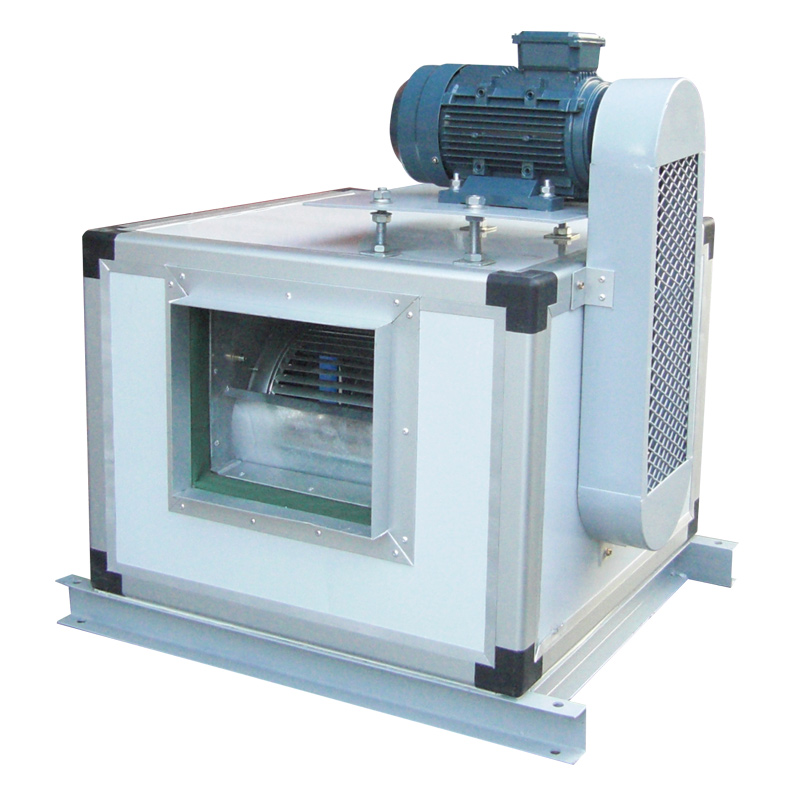

CBF Series High efficiency forward tilt box-shape centrifugal fan
Product specification
Model: 250～1,000mm
Air volume: 1,500～150,000cmh
Static pressure: 100～3,000pa
Working temperature: - 20°C to + 80°C
Relative humidity: ≤90%
Medium condition:air with particle concentration ≤150mg/m3
Spare parts (purchased separately): reducer (soft connection), air valve, muffler, filter box
Application: applicable to industrial production, commercial buildings, civil buildings, HVAC
Product
introduction
● The
box frame is aluminum alloy pipe, and the inner wall of the box plate is pasted
with wave silencing cotton or thickened with sound insulation material
● It
can be made of black carbon steel, galvanized sheet, galvanized post-treatment,
stainless steel (SUS304 / 316 / 310S) or other special materials
● The
overall fan is of detachable design, convenient for maintenance and cleaning
● The
appearance coating can be produced according to the requirements specified by
the customer
● The
export diversion can be produced according to the requirements specified by the
customer
● All
impellers are subject to dynamic and static balance correction, and the balance
standard is in accordance with ANSI / amca204-05 (r2012)
