BOX FAN

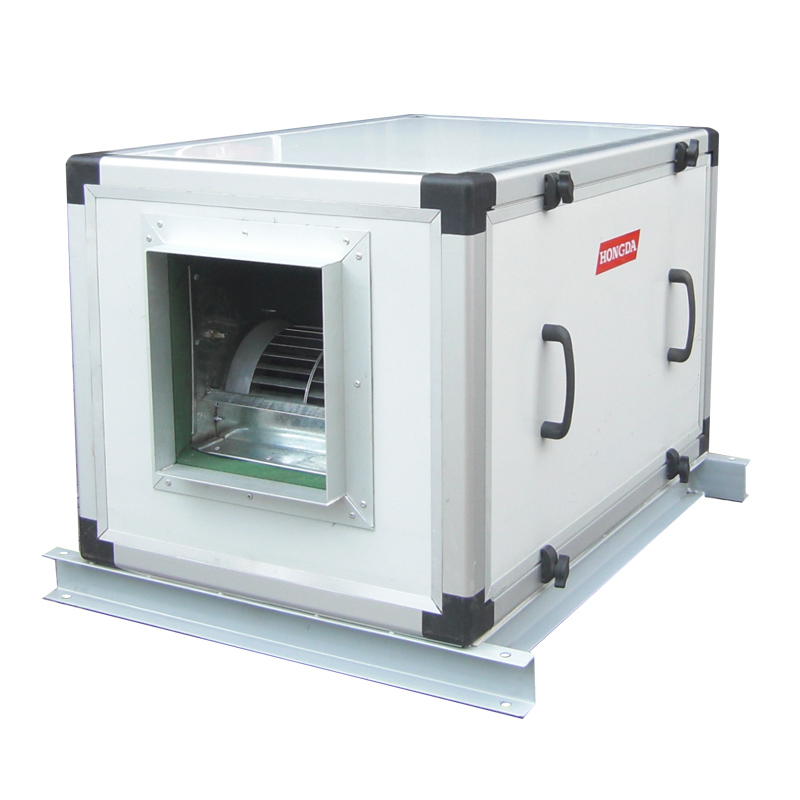

BBF/BBC Series Explosion proof box-shape centrifugal fan

Product specification
BBF (forward tilt box type) BBC (back tilt box type)
Model: 250～1,400mm
Air volume: 1500～260,000cmh
Static pressure: 100～3,000pa
Working temperature: - 20°C to + 80°C
Relative humidity: ≤90%
Medium condition:air with particle concentration ≤150mg/m3
Spare parts (purchased separately):reducer (soft connection), air valve, muffler, filter box
Application:it is suitable for ventilation in industrial production, commercial construction, chemical production and inflammable and explosive gas production

Product introduction

● The box frame is aluminum alloy pipe, and the inner wall of the box plate is pasted with wave silencing cotton or thickened with sound insulation material

● It can be made of black carbon steel, galvanized sheet, galvanized post-treatment, stainless steel (SUS304 / 316 / 310S) or other special materials

● The overall fan is of detachable design, convenient for maintenance and cleaning

● The appearance coating can be produced according to the requirements specified by the customer

● The export diversion can be produced according to the requirements specified by the customer

● All impellers are subject to dynamic and static balance correction, and the balance standard is in accordance with ANSI / amca204-05 (r2012)
