Home AXIAL FAN VAH Series High pressure axial flow induced draft fan
AXIAL FAN

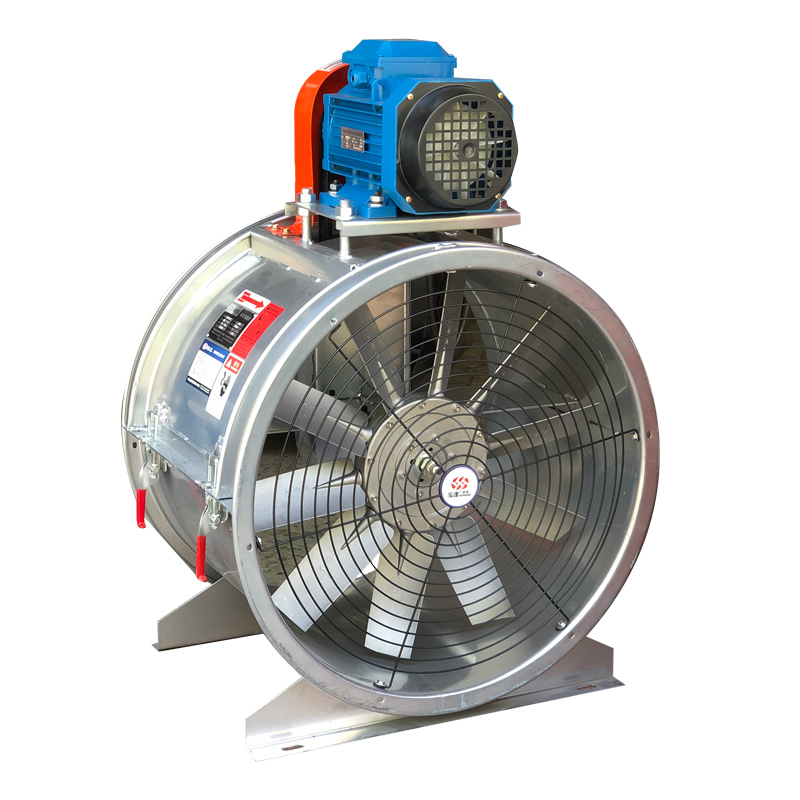

VAH Series High pressure axial flow induced draft fan
Product specification
VAH(Direct drive) VAH-C（Belt drive）
Model: 315～2,000mm
Air volume: 2,000～360,000CMH
Total pressure: 300～1500Pa
Working temperature: －20°C～＋80°C
Relative humidity:
Medium Conditions:air with Particulate Matter Concentration < 100mg/m3
Transmission: direct drive、belt drives
Spare parts (purchased separately): shock absorber, variable diameter (soft connection), air valve, muffler, muffler, filter box
Application: suitable for industrial production, commercial buildings, civil buildings, HVAC
Product
introduction
● The blades of wind turbine are formed by aluminum alloy
casting and the blade angle can be adjusted to meet different performance
requirements
● Special performance requirements or dimension standards can
also be manually welded to create suitable impellers
● Black carbon steel, galvanized treatment, stainless steel
(SUS304/316/310S) or other special materials can be used to manufacture the
case
● The whole fan is disassemblable, convenient for maintenance
and cleaning
● Appearance spray paint can be produced according to customer's
specified requirements
● The
impellers are corrected by dynamic and static balancing, and the balancing
standard is in accordance with ANSI/AMCA204-05 (R2012)
