AXIAL FAN

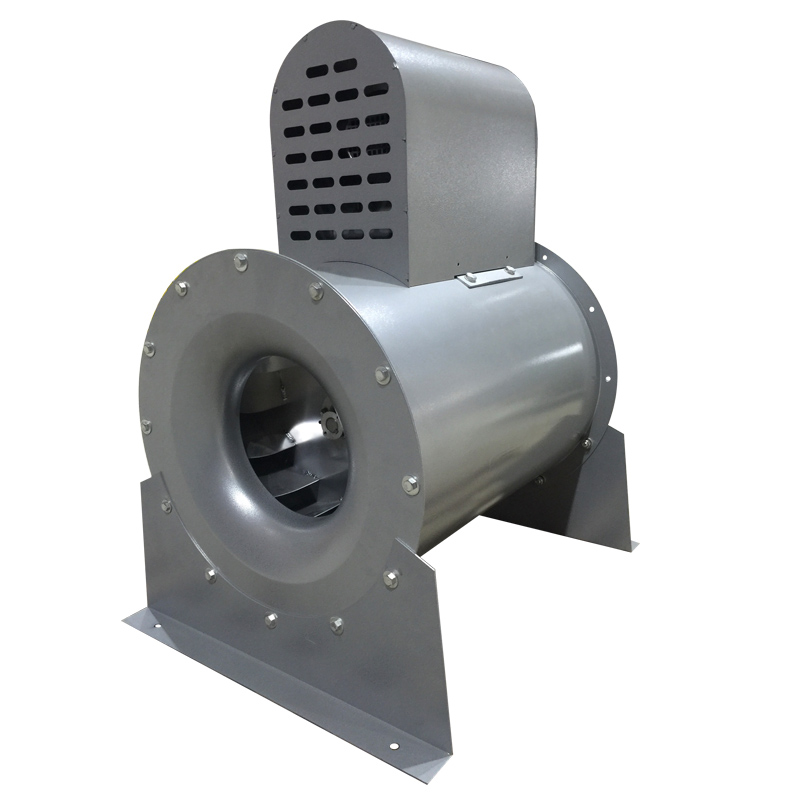

CRA/CRC Series Centrifugal axial flow fan

Product specification
CRA (direct drive) CRC (belt drive)
Model: 250mm～1,700mm
Air volume: 1,000～1000,000cmh
Static pressure: 100-2,000pa
Working temperature: - 20 ° C to + 80 ° C
Relative humidity: ≤ 90%
Medium condition: air with particle concentration ≤ 100mg /m3
Transmission: direct drive、belt drives
Spare parts (separately purchased): shock absorber, reducer (soft connection), air valve, muffler, muffler, filter box
Application: applicable to industrial production, commercial buildings, civil buildings, HVAC

Product introduction

● The use of backward inclined centrifugal impeller can produce higher pressure than the general axial flow fan, while maintaining the advantage of small volume of axial flow fan

● It can be made of black carbon steel, galvanized treatment, stainless steel (SUS304 / 316 / 310S) or other special materials

● The overall fan is of detachable design, convenient for maintenance and cleaning

● Appearance painting can be produced according to the requirements specified by customers

● All impellers are subject to dynamic and static balance correction, and the balance standard is in accordance with ANSI / amca204-05 (r2012)
